Glass washing machine is a special equipment for cleaning and drying the glass surface before the deep processing process such as mirror making, vacuum coating, tempering, hot bending and hollow glass lamination. Glass cleaning machine is mainly composed of transmission system, brushing, water washing, pure water washing, cold, hot air drying, electric control system, etc. According to the needs of users, medium and large glass cleaning machines are also equipped with manual (pneumatic) glass flipping cars and inspection light sources and other systems. Glass washing machines have become an essential component in the modern glass production and manufacturing process. These machines are designed to thoroughly clean and remove impurities from glass surfaces, ensuring that the final product meets industry standards for clarity, finish, and quality. With the increasing demand for precision and efficiency in the glass industry, the glass washer machine, including automatic glass washers, horizontal glass washers, and industrial glass washing machines, has evolved significantly in terms of performance, functionality, and automation. With ENKONGS efficient and affordable glass washing machine, you can increase efficiency and reduce costs while has a deep processing on your glass.
ENKONGS glass washing machine is a handy piece of equipment that helps clean glass surfaces during and after they’re made. These machines use water jets, detergents, and brushes to get rid of dust, dirt, oil, and other gunk from glass panels. We can find glass washing machines in all sorts of industries like construction, automotive, and solar energy. Keeping the performance of these machines up to par is super important because any leftover grime on the surface can mess with how the glass looks and its strength.
Performance of Glass Washing Machines
Glass washing machines are designed to clean glass products with unparalleled efficiency and precision. These machines utilize advanced technology to ensure that glass items are thoroughly cleaned, dried, and ready for the next stage of production. The performance of ENKONGS glass washing machines can be attributed to several key features.
1. High cleaning efficiency. Glass washing machines are equipped with powerful spray nozzles and brushes that effectively remove dirt, dust, and other contaminants from the surface of glass products.
2. Consistent cleaning results. These machines ensure uniform cleaning across all glass items， reducing the chances of manual errors and inconsistencies.
3. Energy and water savings. Modern glass washing machines are designed to minimize water and energy consumption, making them environmentally friendly and costeffective.
4. Fast drying. Glass washing machines feature advanced drying systems that quickly remove moisture from glass items. preventing water spots and streaks.
Why Choose ENKONGS Glass Washing Machine?
Choosing the right glass washing machine depends on the specific needs of the production process. For small-scale operations, a glass washer machine may be sufficient, providing efficient cleaning for smaller glass panels. However, for larger-scale industrial applications, machines like the automatic glass washer or industrial glass washing machine offer enhanced automation and high throughput, making them ideal for high-volume production environments. The horizontal glass washer is perfect for industries that work with larger glass panels, providing a stable and efficient solution for cleaning flat glass surfaces.
As the glass manufacturing industry continues to evolve, the demand for high-quality, clean glass surfaces will only grow. The innovations in glass washing machines, such as automation, energy efficiency, and high-speed cleaning, are ensuring that manufacturers can meet these demands while minimizing environmental impact and operational costs. With the continued development of advanced features and systems, the glass washing machine will remain an indispensable tool in glass production for years to come.

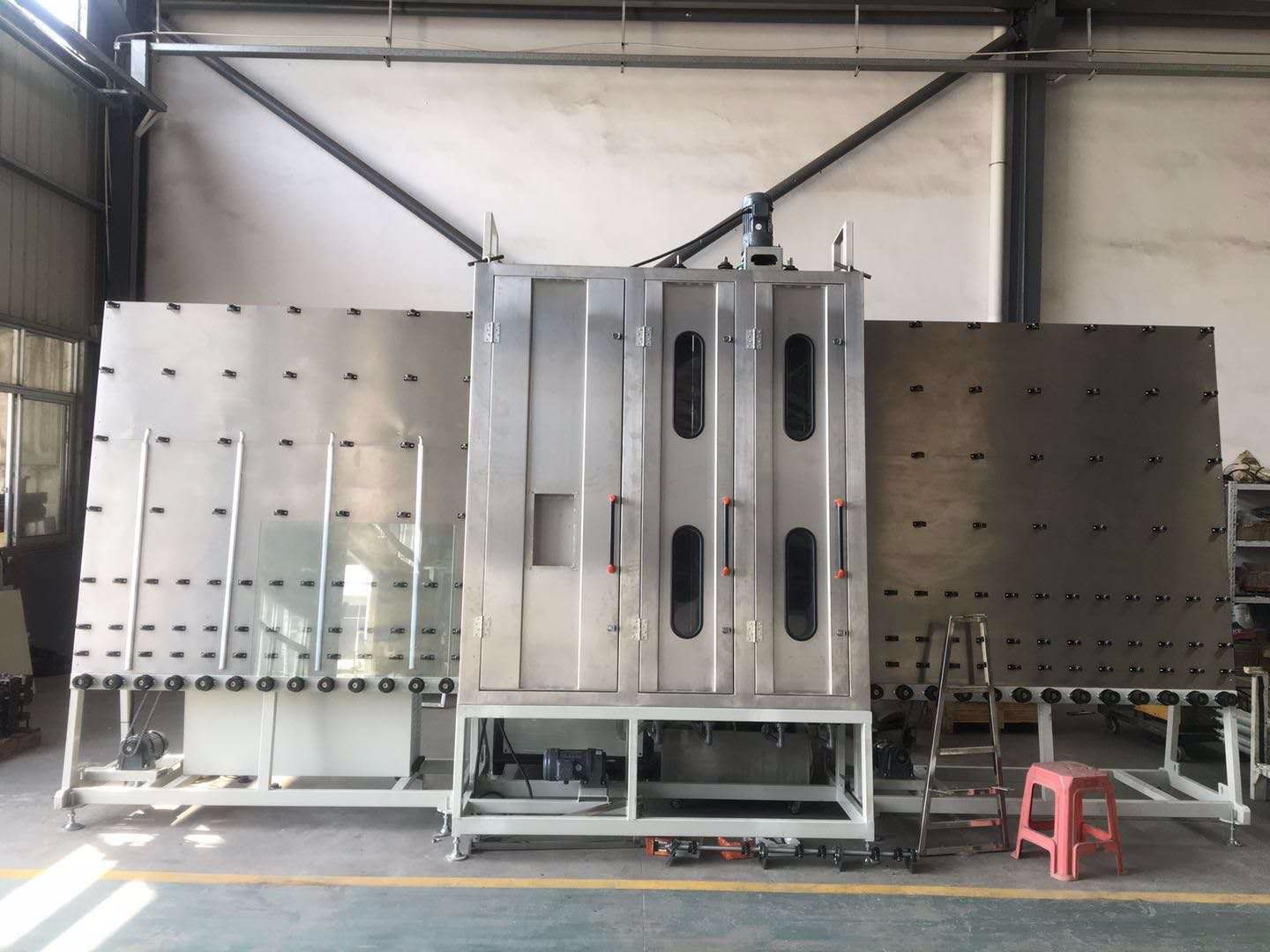

This line can making double insulating glass and three insulating glass automatically.
1. It adopts imported PLC control system, which reach digitizing & Control unit. It has many advantages: steady work, high automation, easy operation and high efficiency. This model can achieve 800 pieces finished glass at one shift 8 hours.
2. It uses human machine interface touching screen. Worker can transfer the auto and manual easily. On the touching screen, worker can get the line processing condition and error condition. Besides, It has single section operation function.
3. We uses anti-acid & alkali rubber delivery wheel.
4. Cleaning section adopts high quality stainless steel material. It has 6 piece brush water cleaning device and 2 stages cleaning, which can ensure the glass clear enough. Special design spraying device, which angle can be adjusted according to demand. It is easy to be cleaned and maintained. Besides, it has water heating device. If the temperature is lower than 7°, we suggest that you can consider using it.
5. This line has automatic LOW-E identification system and install special brush for LOW-E glass.
6. There is water mist separator in drying section, which can ensure glass drying fully.
7. Each transporting section adopts buffer stop function, which can avoid the bumping phenomenon and reduce the wear and tear of delivery wheel.
8. Delivery back board adopts double surface polyurethane high strength MDF, which is suitable for the insulating glass work in long time.
9. Germany technology blowing knife, which distance can be adjusted according to glass thickness.
10. Aerial plug is interference free performance function and it is easy to be installed and maintained.
11. Adopts hydraulic drive. The action is led by four points same step rack and pinion. This design can ensure the level assembly of double pressing board. According to different size glass, it has pressure adjusting function. The pressure keeping time also can be adjusted according to glass size.
1, horizontal glass cleaning machine using national standard square tube skeleton; Horizontal horizontal structure;
2, the temperature controller of horizontal glass cleaning machine can adjust the air temperature, from 0-90° can be adjusted;
3. The transmission part of the horizontal glass cleaning machine is controlled by a stepless variable speed machine, and the cleaning speed can be adjusted arbitrarily;
4, horizontal glass cleaning machine conveyor rod, brush rod and sponge rod are made of high temperature, acid and alkali resistant material, long service life;
5, horizontal glass cleaning machine for intensive drum driven design, large processing area, circulating water cleaning glass once completed.
6, horizontal glass cleaning machine using centrifugal fan, small volume, large air volume; High temperature drying system, the surface temperature after glass cleaning is about 30-50°.
Matters needing attention
(1) Be sure to open the blower first, and then open the heater. Turn off the heater first, then the blower.
(2) When the thickness of the glass plate changes, it is necessary to adjust the height of the wind knife first, otherwise it will cause damage accidents.
(3) Before stopping the transmission motor, be sure to reduce the speed regulator to zero.
(4) There is an emergency stop button on the console, which can be used in case of emergency.
(5) The glass must be placed within the limit of the feed section.
(6) When adding tap water to the washing tank, the water level should not exceed 250MM, and when the water level is lower than 200MM, water should be added in time.
It is very important to carry out daily maintenance and maintenance of the machine, usually to often observe the moving part of the machine, waterway system, wind system, electrical system, and stop immediately in case of emergency.
(1) Bearing and lubrication lubricate each lubrication point in time.
(2) The water used in the maintenance and cleaning section of the waterway system is used in the cycle. The water in the water tank should be replaced every day to ensure that the cleaning water is clean, and the water tank and filter device should be cleaned once a month. The water spraying can be monitored through the observation hole on the cleaning section cover. If there is blockage, stop the pump, open the box cover, remove the spray nozzle, and install after cleaning.
(3) Maintenance of the shunt system regularly check the operation of the blower, stop immediately in case of abnormal sound, and report to the maintenance department for inspection. The filter grid of the air intake is cleaned every two months, and the blower room is usually kept clean to avoid dust being sucked into the air path and polluting the glass.
(4) Waterway system The waterway system consists of two water tanks and four sets of circulating water systems. Detergent box should use PH=7 neutral glass cleaning agent, the last glass rinsing should use deionized water, the quality of water directly affects the surface cleanliness of the glass. The temperature of the washing liquid is generally controlled at 30 ~ 60 degrees (the water temperature heating control device is prepared by the user).
(5) The compressed air from the blower of the air path system is sent to the upper and lower cold air knives and the distance between the upper and lower hot air knives and the glass plane can be adjusted, and the gap must be adjusted when the glass thickness is changed.
(6) Installation and adjustment ① Site conditions should have 380V AC power supply, industrial water source, drainage ditch. ② Place the feed section frame, cleaning section frame, drying section frame, discharge section frame, control cabinet and ventilation chassis correctly.
