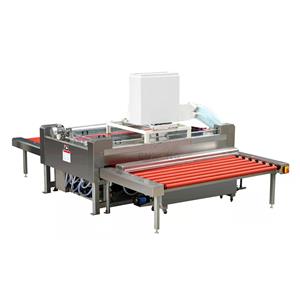

QX25 Glass Washing Machine Technical Parameters
Structure Features
1. The machine structure is aluminum alloy assembled structure,never scrap, with permanent service life, and it is high efficiency machine which can save 70% energy. The machine is for washing glass before tempering, after edging and before screen printing.
2. Other structure parts are top- grade powder coated which is better than paint and make machine surface corrosion resistance
3. All transmitting rubber rollers of the machine are vulcanized rubber with SS304 shaft(They are forbidden to contact with acidic liquids.), which can reduce secondary pollution for glass caused by rust, to achieve requirements for high quality wash.
4. Washing section and other parts contacted with water are made of stainless steel material to reduce secondary pollution and rust problem.
5. Washing section and drying section can be lift up max.to 350mm as a whole, which is convenient to wash and maintain.Two times protect:digital control stroke protection, safety limit switch protection.

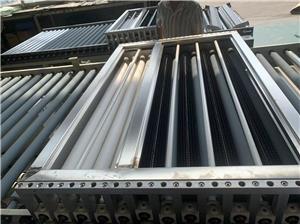

6. The machine has three pairs of brushes (φ160mm) with SS304
shaft. Washing LOW-E glass function : can wash LOW-E glass, ordinary coated and solar coated glass without any scratch on surface.
7. The machine has two pairs of air knife made of stainless steel and aluminum, which has large wind and good drying effect. The machine has air heating system.
8. Blower has air filter in air inlet, big airflow and excellent drying effect. The whole blower is installed on the top of machine to save space and it can be risen up together with washing and drying section, and the air filter is on the side for convenient inspection and cleaning. Air filter is need to clean every 7 days.
9. Main drive is gear drive, frequency speed control and digital display. Brush roller drive of washing section is drove by upper and lower motors with separate belts. With the advantages of automotive pulleys without tension wheel, flexible brush rotation, high precision, etc., brushes have smooth speed and long service life and can wash special glass which need high quality clearance.
10. The machine is control by mechanical button and with digital display, which is convenient of workers operation. It’s the best choice for saving labor if connect with other machines. Connected frequency conversion, other machine can control washing machine speed.
11. Water tanks of machine are movable and put on side , which is easy for cleaning , changing water, checking, etc., and make washing effect better.
Technical Parameters
1. Max. Glass Width : 2500mm
2. Min. Glass Size: 400mm*400mm (limit to put glass from left and right sides in single row)
3. Glass Thickness: 3mm-25mm (digital display)
4. Speed Range: Vmax=1-12m/min (glass thickness within 3-25mm)
5. Rubber Roller and Brush Roller Speed: frequency adjustment.
6. Working Height: （ 900±25 ）mm
7. Total Power: 35KW
8. Water Source: circulating water,city water, and deionized water ( Buyers need to prepare deionized water equipment by themselves. )
9. Power Supply: 380V, 50HZ
10. (Packing Size: 1. 3800X2200X1300mm, 1Pcs; 2. 2900X1700X1800, 1Pcs; 3.1800X1100X1200mm 1Pcs; 4.2700×600×500, 1Pcs; 5. 1200X180X1650 2Pcs; 6.4400X180X180, 2Pcs.)
Machine Weight: 3840KG
Main Parts Configuration
Main Drive Motor: Zhejiang
Brush Motor: Zhejiang
High Pressure Blower: Guangdong
Water Pump: Hunan
Brush: Anhui
Inverter: Rexorth
All stainless steel panel, air knife : Guangdong
Stainless steel water tank and covers: Guangdong
Transmission Rollers: Guangdong
Main Components in Control Cabinet: Schneider
Glass cleaning machines play a crucial role in the glass industry, ensuring that glass products are free from dirt, stains, and other impurities. These machines come in various forms and serve different purposes in the glass manufacturing process.
Glass finishing cleaning machines are essential for achieving a pristine and polished surface on glass products. These machines utilize advanced cleaning techniques to remove any remaining residues or imperfections from the glass surface. By incorporating automated cleaning processes, glass finishing cleaning machines ensure a high level of cleanliness and quality in the final product.
Glass treatment washers are designed to apply specific treatments or coatings to the glass surface after the cleaning process. These treatments may include protective coatings, anti-reflective coatings, or other enhancements to improve the durability and functionality of the glass. Glass treatment washers play a vital role in enhancing the performance and aesthetics of glass products, making them suitable for a wide range of applications.
Glass production line cleaners are responsible for maintaining the cleanliness and efficiency of the entire glass production line. These machines are strategically placed along the production line to remove any contaminants or debris that may accumulate during the manufacturing process. By ensuring a clean production environment, glass production line cleaners help minimize defects and ensure consistent quality in the glass products.
Glass manufacturing line washers play a critical role in keeping the manufacturing equipment and machinery clean and operational. These washers are specifically designed to clean and sanitize the various components of the glass manufacturing line, including conveyors, cutting machines, and inspection stations. By maintaining a clean and hygienic environment, glass manufacturing line washers contribute to the overall efficiency and safety of the production process.
Glass processing cleaning machines are versatile tools used for cleaning and preparing glass materials before further processing. These machines may incorporate features such as ultrasonic cleaning, high-pressure water jets, or specialized cleaning solutions to remove dirt, oils, or residues from the glass surface. Glass processing cleaning machines ensure that the glass materials are in optimal condition for subsequent manufacturing processes.
Glass cleaning machines are indispensable in the glass industry, playing a vital role in ensuring the cleanliness, quality, and efficiency of glass production processes. Glass finishing cleaning machines, glass treatment washers, glass production line cleaners, glass manufacturing line washers, and glass processing cleaning machines each serve a specific function in the glass manufacturing process, contributing to the overall success and quality of glass products. By investing in advanced cleaning technologies and equipment, glass manufacturers can achieve superior results and meet the demands of the market effectively.
